Custom Carbon Fiber Roll Wrapped Tube for Drone Arms & Sports Equipment | High Modulus Filament Wound Carbon Tube Manufacturer
Engineered for weight-critical performance — precision roll-wrapped carbon fiber tubes built for drone airframes and high-performance sports equipment, tailored to your exact OD, wall thickness and length.
- Overview
- High-Strength Carbon Fiber Roll Wrapped Tube Manufacturer
- Recommended Products
- Drone arms & landing gear — cut weight without cutting strength, extending flight time
- Gimbal poles & camera booms — rigid, vibration-resistant support for stable aerial imaging
- Folding frame tubes & prop shafts — consistent stiffness for predictable flight dynamics
- Fishing rod blanks — sensitive tip action with powerful backbone
- Arrow shafts & archery equipment — straightness and consistency shot after shot
- Tent poles & camping gear — lightweight, packable strength
- Racket shafts, ski poles & bicycle accessories — responsive, fatigue-resistant performance
- OEM / ODM production with NDAs and exclusive tooling
- Custom dimensions per your 2D/3D drawings — OD, ID, wall, length, taper
- Custom resin systems for higher temperature, higher modulus or fire-retardant requirements
- Surface treatments — glossy, matte, painted, wrapped or sanded finish
- Secondary processing — cutting, drilling, slotting, threading and end-plug assembly
- Incoming material inspection — fiber grade and resin batch verification
- In-line process monitoring — winding tension, resin content and curing temperature recorded
- 100% dimensional inspection — OD, wall thickness and length checked per piece
- Mechanical testing — tensile, flexural and impact samples tested per batch, with reports available on request
- Protective packaging — each tube individually wrapped, foam-separated and boxed to prevent surface damage
- Shipping options — DHL / FedEx / UPS express, air freight, sea freight (FCL / LCL)
- Trade terms — EXW / FOB / CIF / DDP, shipped from Shenzhen, China
- Sample lead time — 3–7 days for stock specs; custom samples 7–15 days
- Production lead time — 15–25 days for standard custom orders
1. Product Overview

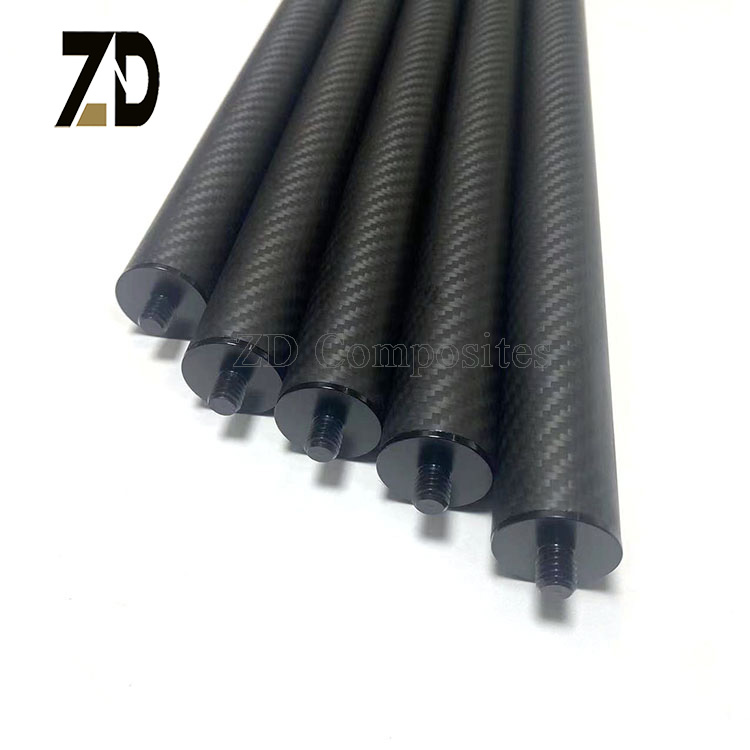

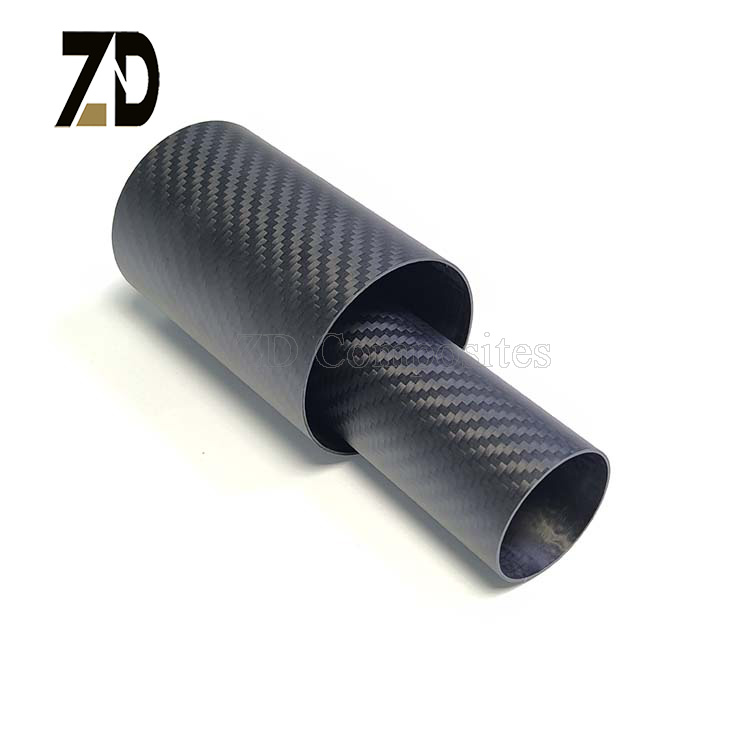

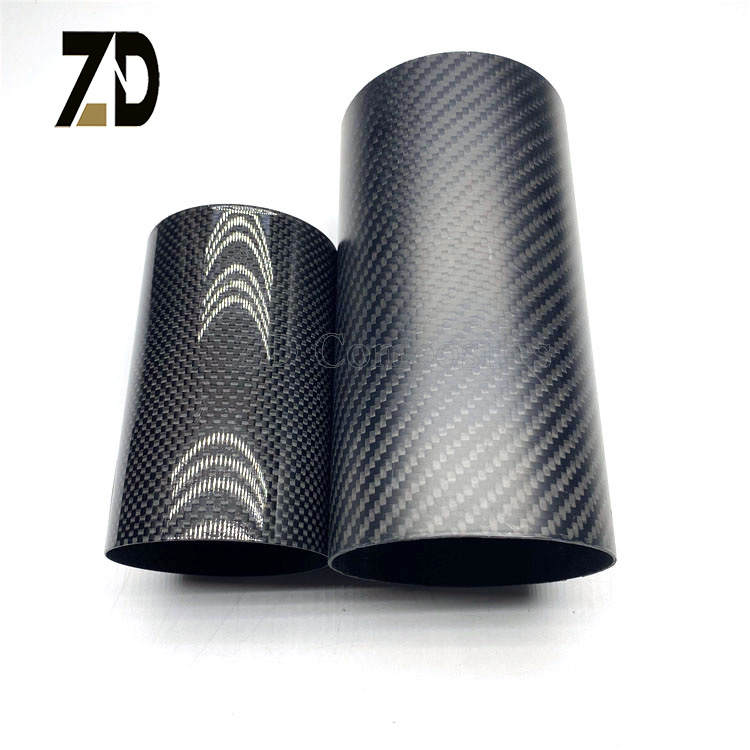

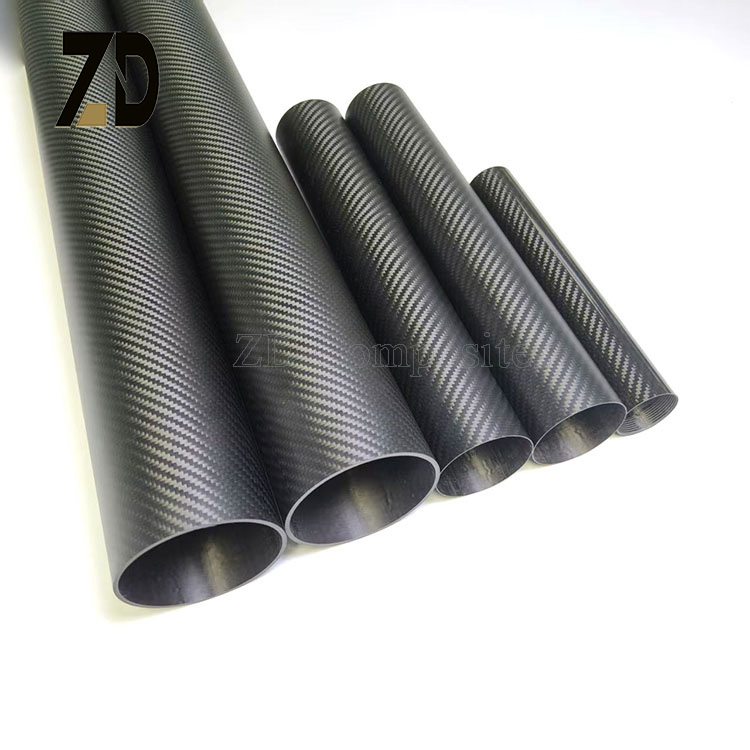

Custom Carbon Fiber Roll Wrapped Tube – The Lightweight Backbone of Drones & Sports Equipment
Every gram counts when performance is on the line. Our carbon fiber roll wrapped tubes are manufactured through a precision roll-wrapping and filament winding process, delivering an exceptional strength-to-weight ratio that aluminum and steel simply cannot match.
Engineered from high-modulus carbon fiber tows (3K / 6K / 12K) and aerospace-grade epoxy resin systems, each tube is cured under controlled pressure and temperature to achieve consistent fiber alignment, uniform wall thickness and superior fatigue resistance. The result: a lightweight structural component that absorbs impact, resists bending and performs reliably under repeated high-load cycles.
From drone arms and gimbal poles to fishing rod blanks, arrow shafts and tent poles — we supply fully customized carbon fiber roll wrapped tubes in diameters from Ø6 mm to Ø100 mm, with wall thickness and length tailored to your application. Whether you need 100 pieces for prototyping or 10,000 pieces for mass production, our factory delivers precision at scale.
2. Key Features & Benefits
01 Lightweight, High Strength Our tubes deliver a strength-to-weight ratio up to 3x higher than aluminum — reducing drone takeoff weight and improving flight time, or lightening sports gear for faster swing and easier handling.
02 Precision Roll-Wrapped Construction Controlled fiber winding angle and uniform wall thickness (±0.1 mm tolerance) ensure consistent mechanical performance in every single tube, batch after batch.
03 Superior Fatigue & Impact Resistance High-modulus carbon fiber combined with epoxy matrix absorbs repeated shock loads — critical for crash-prone drone arms and high-stress sports applications.
04 Customizable to Your Spec OD, ID, wall thickness, length, fiber modulus, surface finish (glossy / matte / painted) — every parameter is configurable to match your design exactly.
05 Factory Direct with Full Traceability In-house production from raw fiber to finished tube, with material certificates, dimensional inspection reports and pull-test data available per batch
3. Technical Specifications
| Parameter | Standard Range | Notes |
|---|---|---|
| Outer Diameter | Ø6 – Ø100 mm | Custom sizes available |
| Wall Thickness | 0.5 – 10 mm | Uniform ±0.1 mm |
| Length | 100 – 3000 mm | Cut-to-length per order |
| Fiber Type | T300 / T700 carbon fiber | 3K / 6K / 12K tows |
| Resin System | Epoxy (standard) | Other resins on request |
| Fiber Volume Fraction | 60 – 70% | Controlled in process |
| Density | 1.5 – 1.6 g/cm³ | Typical value |
| Tensile Strength | 1,500 – 2,400 MPa | Typical, depends on fiber grade |
| Tensile Modulus | 100 – 150 GPa | Typical, depends on fiber grade |
| Surface Finish | Glossy / Matte / Painted | Custom colors available |
| Tolerance | ±0.1 mm (diameter & wall) | Per drawing |
4. Applications
For Drones & UAVs
For Sports Equipment & Sporting Goods
5. Customization & OEM Service
Your project, your spec — we build it. As an experienced carbon fiber tube manufacturer, we support:
Send us your drawing or a sample — our engineers will confirm feasibility, tooling cost and lead time within 2 working days.
6. Quality Control
Quality is not a department — it is a process. Every batch of our carbon fiber roll wrapped tubes passes through a 4-stage control system:
7. Packaging & Shipping
8. FAQ
Q1: What is the MOQ? A: For standard stock specifications, trial orders from 100 pieces are welcome. For custom sizes, MOQ is typically 500–1,000 pcs — our sales team will confirm based on your exact specification.
Q2: Do you provide free samples? A: Yes. Stock specification samples are free (shipping at your side). Custom samples require a small production fee, fully refundable upon order confirmation.
Q3: Can you match my existing tube specification? A: Yes. Send us a drawing, sample or just OD/ID/wall/length data — we will match or improve the specification, including fiber grade and surface finish.
Q4: How do you ensure straightness and consistency? A: Our roll-wrapping process controls fiber tension and curing profile, and every tube undergoes 100% dimensional inspection with batch mechanical testing.
Aerospace-grade carbon fiber, industrial precision. Custom roll-wrapped tubes from Ø6 mm to Ø100 mm, delivered with full dimensional control and batch traceability.
