Aerospace-Grade Carbon Fiber Plate/Sheet | 0.5mm-50mm Thickness | Custom Sizes | ISO Certified

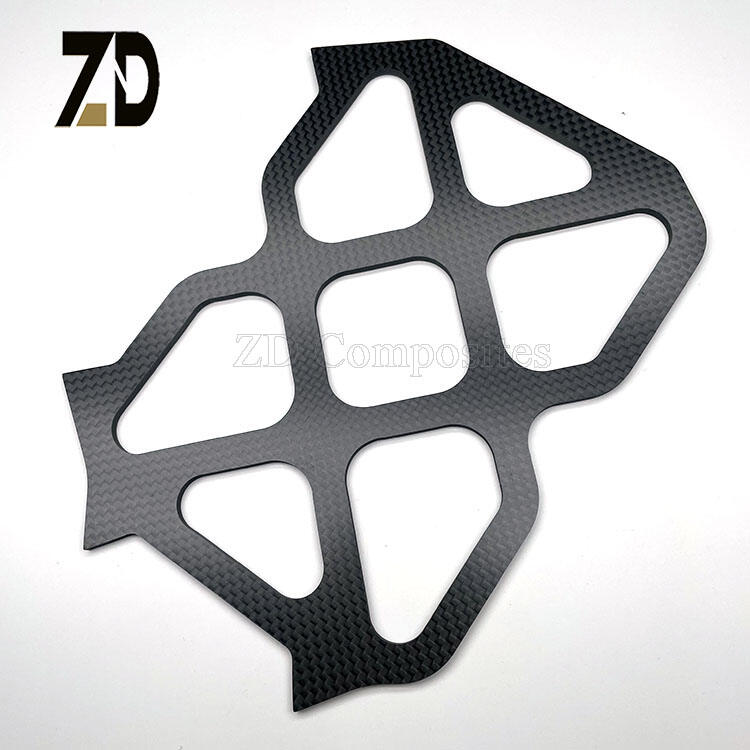

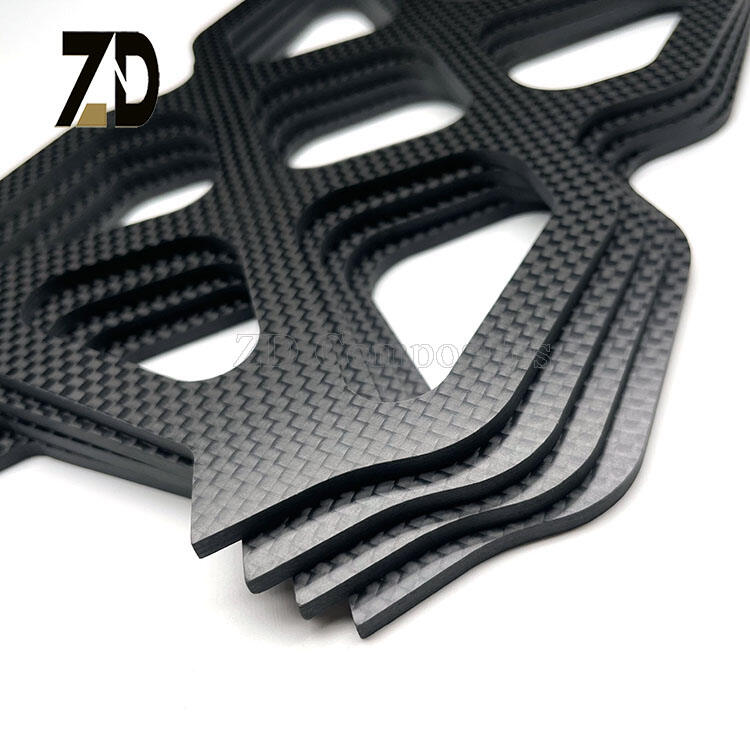

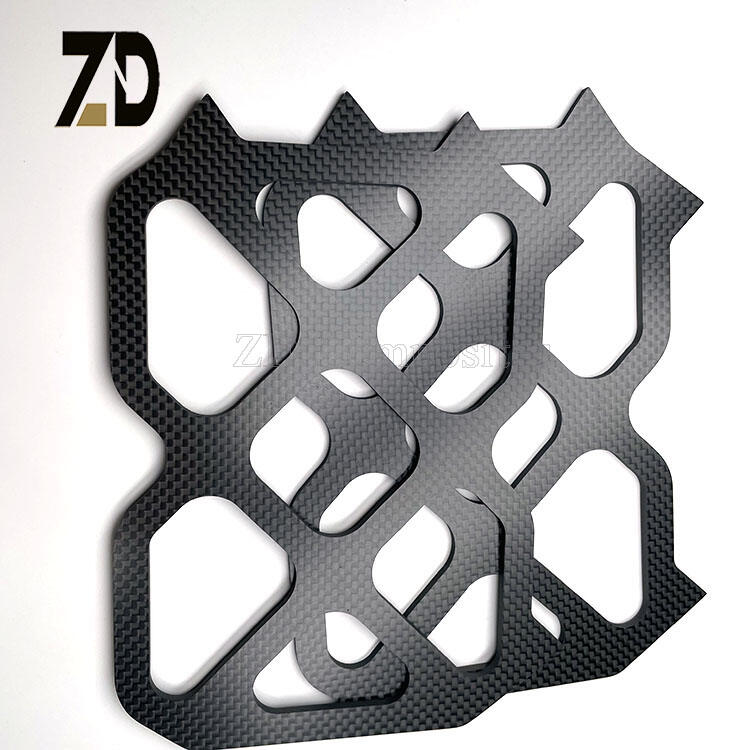

High-Performance Carbon Fiber Plates
Designed for industrial and commercial applications, our plates offer:
Material: 3K/12K woven carbon fiber with epoxy resin (Density: 1.78 g/cm³)
Thickness: 0.5mm, 1mm, 2mm, 4mm, 6mm, 10mm, 20mm, 50mm (Custom sizes available)
Key Features: UV-resistant coating, heat resistance (180°C), corrosion-proof
MOQ: 1 piece | 7-day global shipping | OEM/ODM supported
Ideal For: Robotics, automotive, drones, architectural models, and DIY projects.
- Overview
- Recommended Products
| Parameter | Specification | Testing Standard |
| Material Composition | 3K/12K Woven Carbon Fiber + Epoxy Resin | ASTM D3039 |
| Density | 1.55 g/cm³ (±0.05) | ISO 1183 |
| Tensile Strength | 3,800 MPa | ASTM D638 |
| Flexural Strength | 1,200 MPa | ASTM D790 |
| Thermal Conductivity | 5 W/m·K | ISO 22007-2 |
| Max Operating Temp | +180°C (Continuous) / +220°C (Short-term) | UL 94 |
| Thickness Range | 0.2mm - 100mm (±0.1mm tolerance) | N/A |
| Standard Sizes | 500x500mm, 1000x1000mm, 1000x2000mm | Customizable |
Key Features & Benefits
OEM/ODM Ready:
- Custom laser/CNC cutting (DXF/DWG files accepted)
- Thickness tolerance: ±0.05mm (precision grinding option)
- Durability Enhancements:
- UV-resistant coating (prevent yellowing in sunlight)
- Waterproof & chemical-resistant (HCl/NaOH <10%)
- Logistics Optimized:
- hard carton packaging (anti-scratch)
- EXW/FOB/DDP terms supported
- Compliance:
- RoHS, REACH, ISO 9001 certified
- MSDS & COO documentation provided
Application Scenarios
| Industry | Use Cases | Recommended Thickness |
| Automotive | Motor mounts, battery enclosures, interior trims | 0.5mm-6mm |
| Aerospace | Drone arms, satellite brackets, prototype tooling | 1mm-4mm |
| Robotics | Robotic arm linkages, gripper plates | 4mm-10mm |
| Consumer Tech | Keyboard plates, PS5 faceplates, VR headset frames | 1.5mm-3mm |
| Industrial | Jigs/fixtures, conveyor components | 6mm-20mm |
Quality Control Process
4-Stage Inspection Protocol:
1. Raw Material Check: Fiber density & resin viscosity test
2. Curing Monitoring: Real-time temperature/pressure tracking
3. Post-Processing: X-ray scan for internal voids/delamination
4. Final Verification:
- Dimensional accuracy
Ordering & Customization Workflow
1. Submit Requirements: → Thickness / Size / Quantity / Coating
Design Review: Send CAD files (or sketch) → Free quotation feedback within 24h
2. Quote & Payment: Proforma invoice → T/T or PayPal
3. Production & QC: 5-7 working days ( normally) → Share inspection reports pre-shipment
4. Global Delivery: DHL/FedEx air freight (3-5 days) or sea shipment
FAQ
Q1: Can I get carbon fiber sheet samples before bulk order?
→ Yes! Sample cost: $30-$120 (based on size). Refundable on future mass orders.
Q2: How to handle custom sizes not listed?
→ We cut to your drawings. Tolerance: ±0.2mm (laser) / ±0.1mm (CNC).
Q3: Do you assist with installation?
→ Free technical advisory (bolt torque, adhesive selection). On-site service available for OEM partners
