T800 Carbon Fiber Tube - Ultra-Light High-Strength Carbon Pipe for Professional Racing Gear | High Modulus OEM Manufacturer
Unleash Maximum Stiffness at Minimum Weight. Engineered with aerospace-grade T800 intermediate modulus fiber, our carbon fiber tubes are designed for professional racing environments where every gram and every millimeter of deflection counts.
- Overview
- Recommended Products
- Aerospace-Grade Stiffness: T800 fiber provides approximately 30% higher modulus than standard carbon fiber, ensuring minimal bending under high-speed racing stress.
- Extreme Weight Reduction: Achieve the same structural integrity with thinner walls, cutting weight without compromising safety.
- Fatigue Resistance: Superior resistance to cyclic loading, extending the lifespan of critical racing components.
- Precision Tolerances: We maintain OD/ID tolerances within ±0.05mm, meeting the strict assembly requirements of professional gear.
- Motorsports (F1/GT): Suspension push-rods, steering columns, and aerodynamic stays.
- Professional Drones (UAV): Long-endurance airframes and gimbal supports requiring zero vibration.
- Sports Equipment: Professional cycling tubes, high-end archery shafts, and Olympic rowing oars.
- Robotics: High-speed robotic arms where low inertia is critical for precision.
- Custom Ply Orientation: Tailored layup designs (0°/45°/90°) to optimize for bending, torsion, or compression.
- Secondary Machining: Precision CNC drilling, slotting, and end-fitting installations.
- Hybrid Layups: Combining T800 with Kevlar or M40J for specialized impact or modulus requirements.
- Ultrasonic Flaw Detection: Ensuring zero delamination within the wall.
- Dimensional Verification: 100% inspection of critical diameters.
- Flexural Testing: Batch-tested to confirm the high-modulus performance of T800 fiber.
-
Q: What is the main difference between T700 and T800 tubes?
- A: While T700 is excellent for general high-strength use, T800 offers higher stiffness (modulus). For racing parts that must not bend or vibrate, T800 is the superior choice.
-
Q: Can you provide customized lengths?
- A: Yes, we provide precision cutting up to 3000mm with clean, burr-free edges.
-
Q: Is T800 suitable for high-temperature environments?
- A: With our specialized high-Tg epoxy matrix, our T800 tubes can maintain structural integrity in environments up to 250°C.
1. Product Overview — Performance Beyond Limits

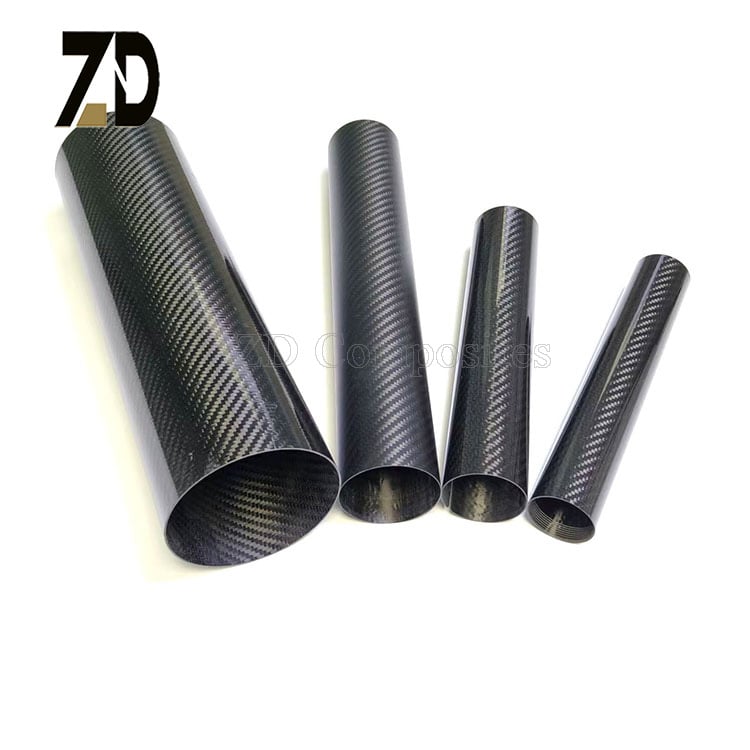

When standard carbon fiber is no longer enough, the T800 Carbon Fiber Tube takes the lead. Utilizing Toray-equivalent T800 intermediate modulus (IM) carbon fiber, these tubes offer a significant leap in tensile strength and stiffness-to-weight ratio compared to conventional T300 or T700 variants.
Designed specifically for Professional Racing Gear, our T800 tubes are cured under high-pressure autoclave or precision roll-wrapping processes to ensure a void-free matrix and perfect fiber alignment. This results in a pipe that can withstand extreme mechanical loads while remaining incredibly light, making it the definitive structural choice for high-speed aerodynamics and structural racing chassis.
2. Why T800? The Professional Choice
3. Technical Specifications
| Property | T800 Carbon Fiber Tube Data |
|---|---|
| Fiber Material | T800 Intermediate Modulus Carbon Fiber |
| Resin Matrix | High-Tg Epoxy Resin |
| Tensile Strength | Approx. 5490 MPa (Fiber Grade) |
| Tensile Modulus | Approx. 294 GPa (Fiber Grade) |
| Surface Finish | 3K Twill / Plain, Glossy / Matte, UD Sanded |
| Available Sizes | Custom OD 5mm - 500mm |
| Fiber Volume | 65% - 70% |
| Thermal Stability | Up to 150°C (Standard) / 250°C (High-Temp Resin) |
4. Applied Scenarios: From Track to Sky
The unique properties of the T800 Carbon Fiber Tube make it indispensable in:
5. Customization & Engineering Support
We don't just sell tubes; we provide engineering solutions. Our OEM services include:
6. Quality Assurance: Zero Failure Policy
Every T800 Carbon Fiber Tube undergoes rigorous testing before dispatch:
7. FAQ: Expert Advice
8. Call to Action (CTA)
Upgrade to T800 Performance Today. Ready to reduce weight and increase the stiffness of your racing gear? Contact our technical team for a free layup consultation and a detailed quote.
