Forged Carbon Fiber Tube - Unique Marble Texture High-Impact Resistant Pipe for Sports Gear | Premium Aesthetic UHM Carbon Manufacturer
Where Elite Performance Meets Bespoke Art. Replace conventional weaves with our Forged Carbon Fiber Tubes. Featuring a signature marble-like aesthetic and exceptional multi-directional impact resistance, these pipes are the definitive structural choice for high-end sports equipment and luxury lifestyle products.
- Overview
- Recommended Products
- Unique Aesthetic Appeal: The chaotic, organic marble pattern provides a premium, non-industrial look that differentiates your brand in the competitive sports market.
- Superior Impact Resistance: The interlocked chopped fiber matrix is exceptionally efficient at absorbing and dissipating energy from sudden impacts, preventing the brittle fracturing sometimes seen in traditional weaves.
- Isotropic Strength: Delivers balanced stiffness and strength in all directions, simplifying the engineering of complex structural joints and links.
- Complex Geometry Integration: Ideal for components with integrated mounting points or varying wall thicknesses that are difficult to achieve with standard rolling.
- Elite Cycling: Handlebars, seat posts, and aero-stays requiring high-impact damping.
- Water Sports Gear: Professional paddle shafts and rowing outriggers.
- Professional Archery: High-stiffness stabilizers and arrow components.
- Luxury Tech Accessories: High-end camera tripods, gimbal arms, and watch chassis.
- Automotive Interiors: Roll bars and structural braces for performance vehicles.
- Custom Layup Design: Adjusting fiber density to meet specific stiffness vs. weight targets.
- Metal Component Bonding: Precision bonding of aluminum or titanium end-fittings.
- Proprietary Finishes: UV-resistant coatings for long-term outdoor exposure.
- Rapid Prototyping: Fast turnaround for design verification samples.

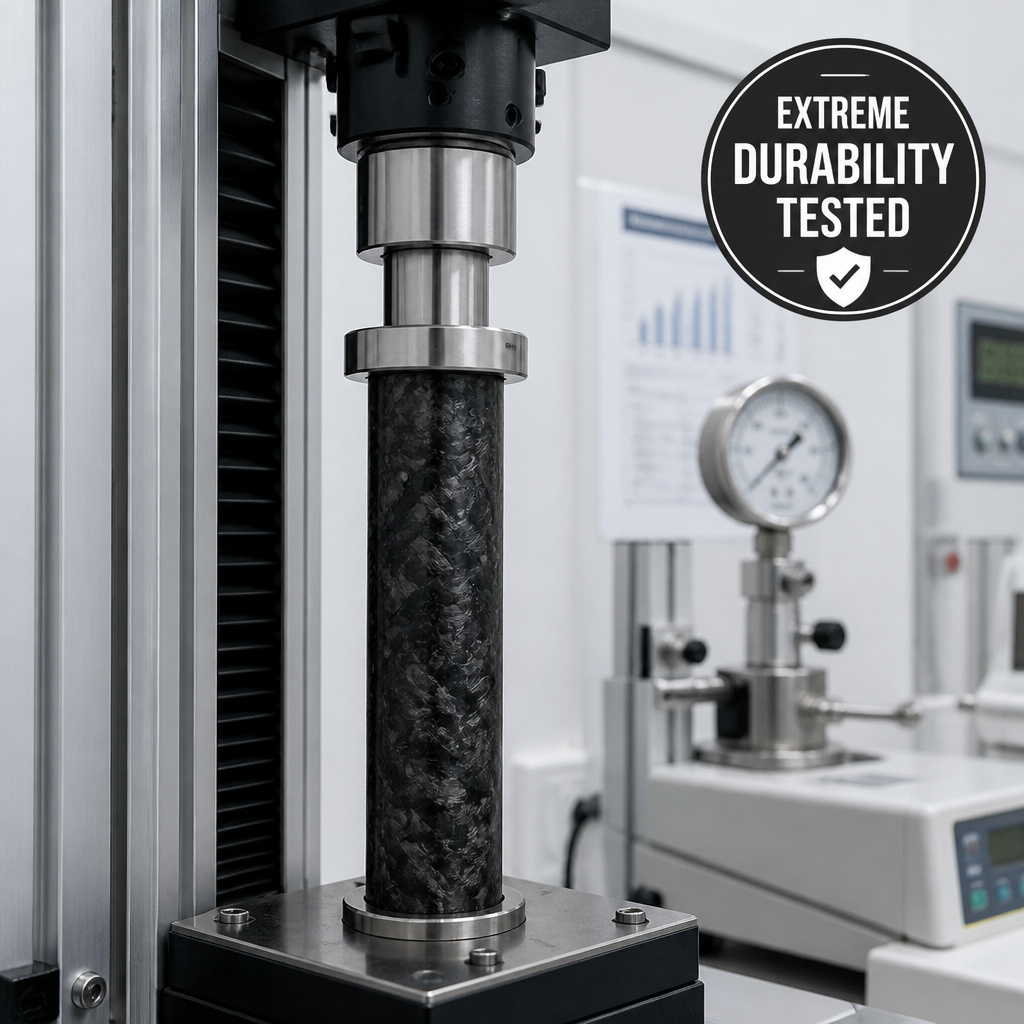

- High-Load Impact Testing: Validating the energy absorption profile of the chopped fiber matrix.
- Aesthetic Consistency Check: Ensuring a vibrant marble pattern across the entire batch.
- Acoustic Damping Analysis: Verifying the internal structural integrity and vibration-reducing properties.
-
Q: Does the marble texture affect the tube's strength?
- A: On the contrary, the randomly oriented fibers provide excellent isotropic strength, making it tougher against multi-directional impacts than traditional 3K weaves.
-
Q: Can the surface be painted?
- A: While the marble texture is usually the main selling point, we can apply translucent color tints (Red, Blue, Gold) that allow the texture to shine through.
-
Q: Is it heavier than standard carbon fiber?
- A: The density is nearly identical (~1.55 g/cm³). Any weight difference usually comes from the wall thickness required for your specific application.

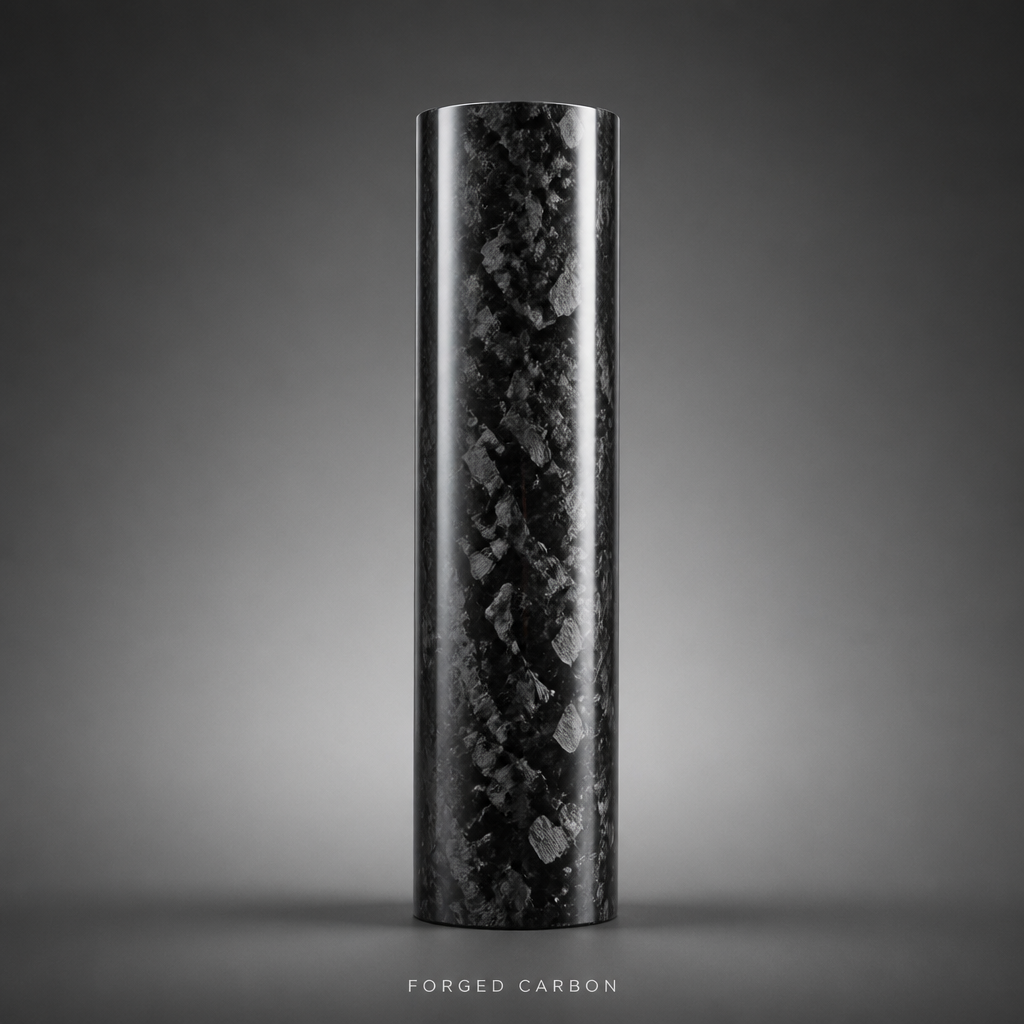

1. Product Overview — A Signature of Strength

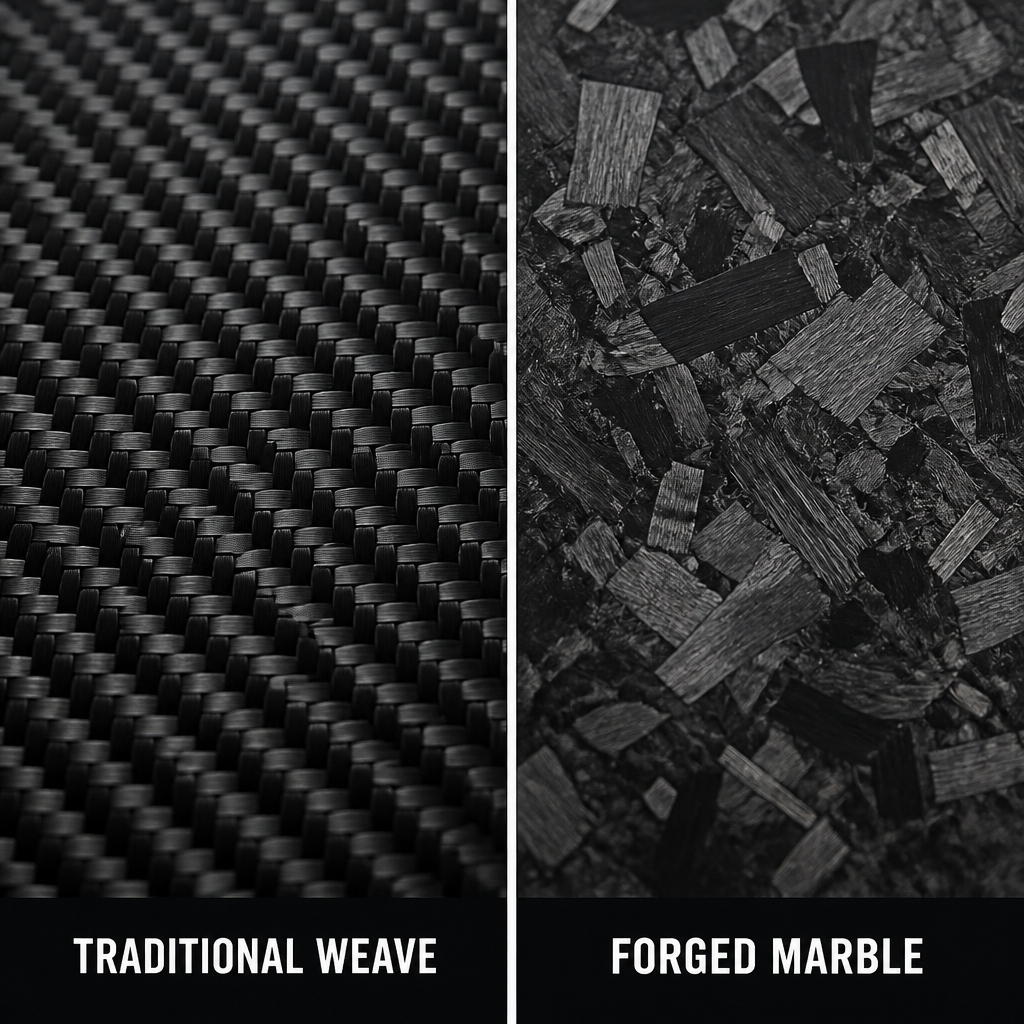

Redefine your product’s identity with the Forged Carbon Fiber Tube. Unlike traditional laminates that use continuous woven fabric, forged carbon is engineered using thousands of randomly oriented chopped carbon fibers. Under high-pressure compression molding, these fibers interlock to form a "Marbled" texture that is entirely unique to every single tube.
This process doesn't just create a stunning visual—it provides the Forged Carbon Fiber Tube with isotropic physical properties, meaning it handles mechanical stress consistently from all directions. It is the perfect marriage of luxury aesthetics and rugged durability.
2. Why Choose Forged Carbon Fiber?
3. Technical Specifications
| Property | Forged Carbon Fiber Tube Data |
|---|---|
| Material Composition | High-Strength Chopped Carbon Fiber + Toughened Epoxy |
| Surface Pattern | Unique Marble / Forged Texture (100% Original) |
| Finish Options | High Gloss, Satin, or Tactile Matte |

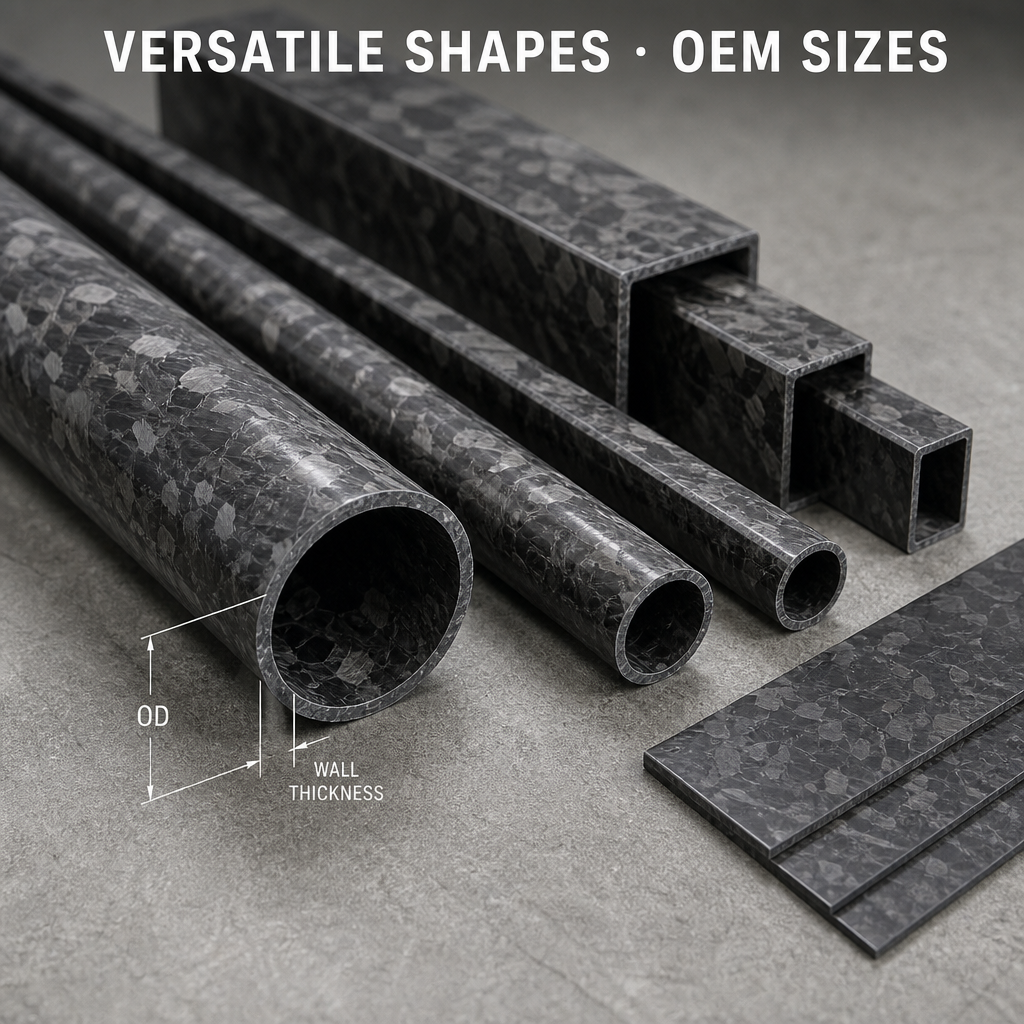

| Standard Tolerances | OD ±0.05mm / Wall Thickness ±0.05mm |
| Impact Strength | Up to 25% higher than standard 3K tubes in puncture tests |
| Processing Tech | High-Pressure Compression Forging |

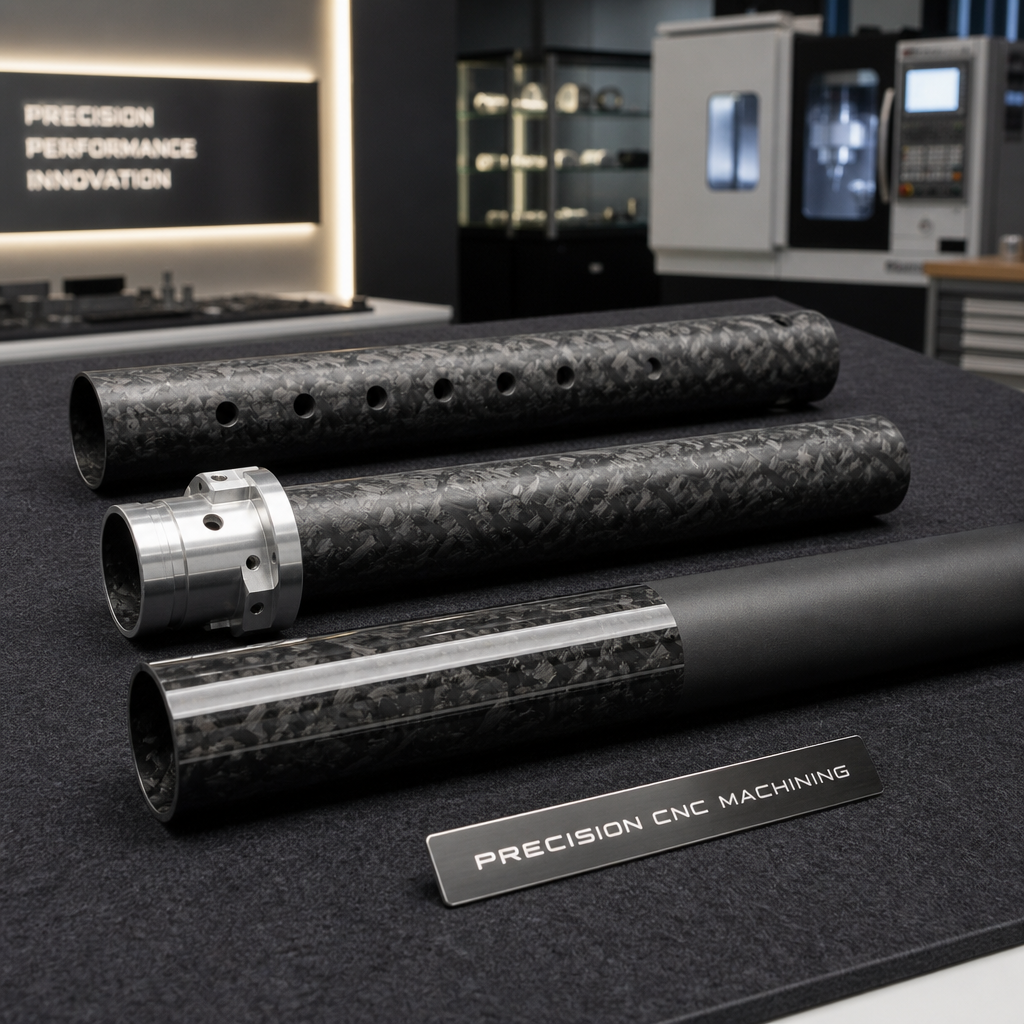

| Secondary Machining | CNC Drilling, Milling, and Threading available |
4. Applied Scenarios: Performance Redefined
The versatility of the Forged Carbon Fiber Tube makes it the premier choice for:
5. Custom OEM & Engineering Support
We provide full-cycle support for your sports gear projects:
6. Quality Assurance: The 100% Inspection Protocol
Every Forged Carbon Fiber Tube is verified through:
7. FAQ: Insights into Forged Carbon
8. Call to Action (CTA)
Elevate Your Gear to the Forged Era. Stand out with the unique marble texture and high-impact performance of our Forged Carbon Fiber Tubes. Contact our engineering department today for a consultation on your next sports gear innovation.
